Ligkt™ Microperforated

Material
Polymer and Aluminium

Standard Dimension
1.47m (Maximum Width)

Standard Thickness
0.18mm, 0.22mm, 0.25mm

Download Catalogue PDF

Finishing
Glossy, Matte, Satin

Transparency
Translucent, Transparent

Fire-Rated Test
DIN 4102: Class B1

Download Specification Sheets ZIP

Ligkt™ Lackfolie

Ligkt™ Translucent

Ligkt™ Design

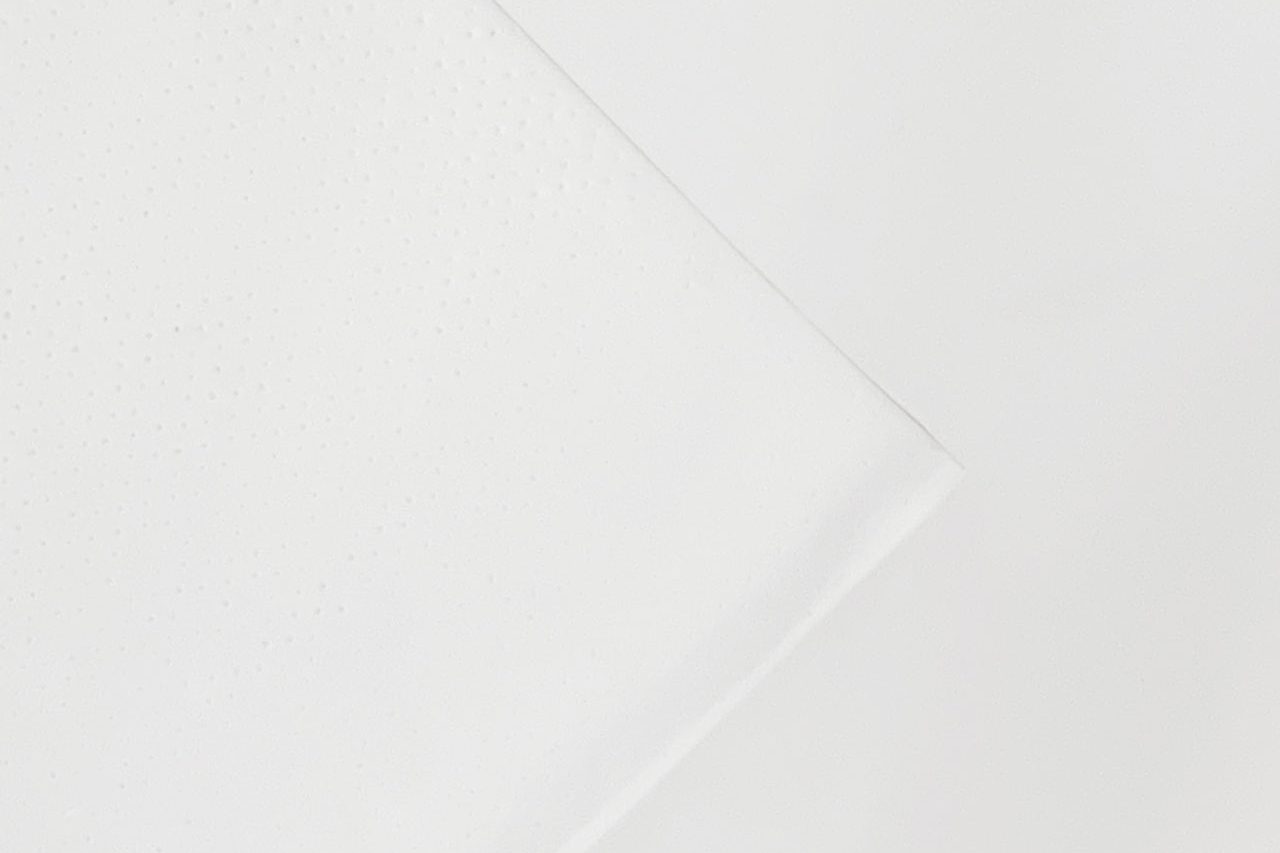

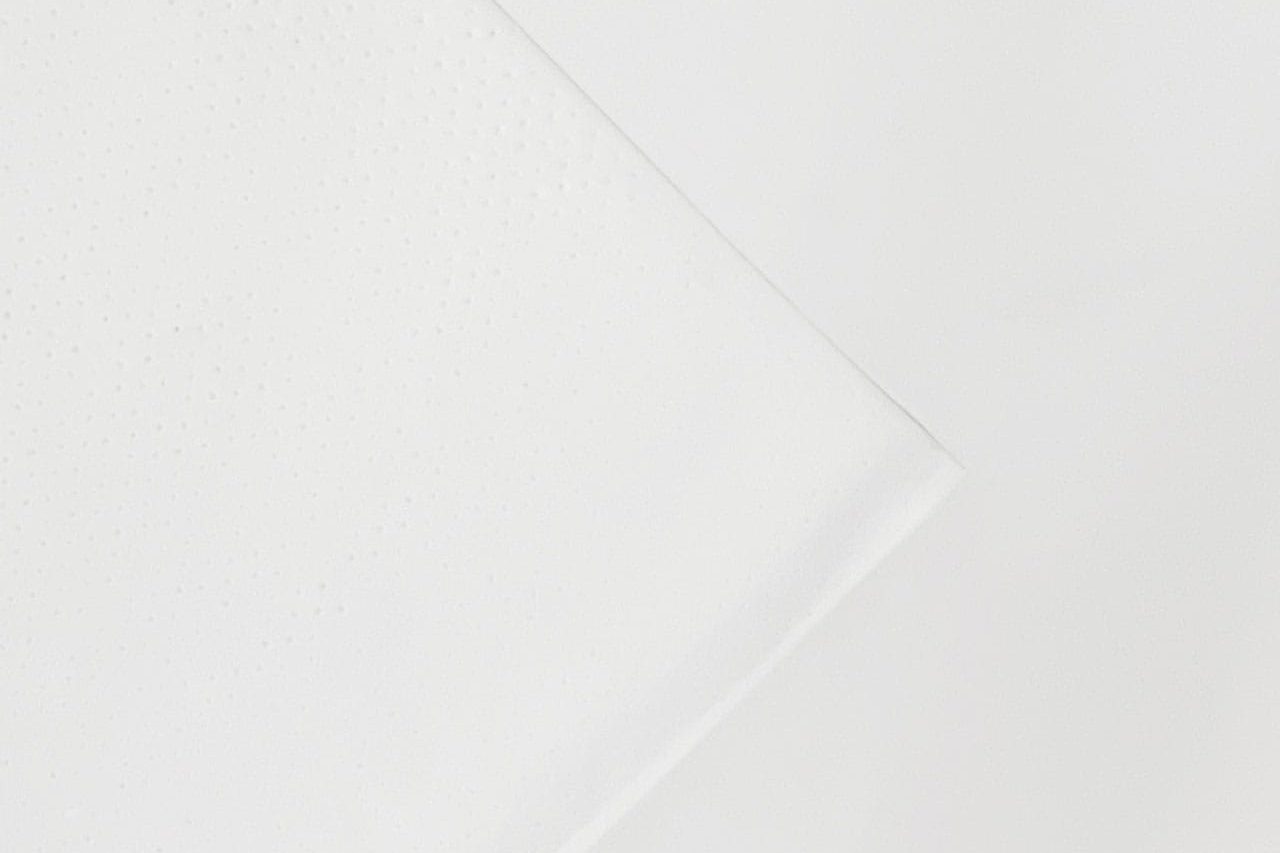

Ligkt™ V2.0/1.0/0.1

0.1mm diameter staggered perforation spaced 2.0mm and 1.0mm apart

▼

Our microperforated acoustic stretched ceiling is made up of a series of perforations. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes (2.0mm and 1.0mm), and the last number refers to the hole diameter (0.1mm). The surface comes in 3 types of finishing – glossy, matte and satin.

Download Specification Sheet PDF

Microperforation Detail

The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter.

Drawing of Ligkt™ Microperforated

Section Detail with Microperforated Pattern V2.0/1.0/0.1

Hole Diameter = 0.1mm
Distance between Holes = 2.0mm/1.0mm

Sound Absorption Coefficient

Ligkt™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.

SAA = 0.83
NRC = 0.85

Previous
Next

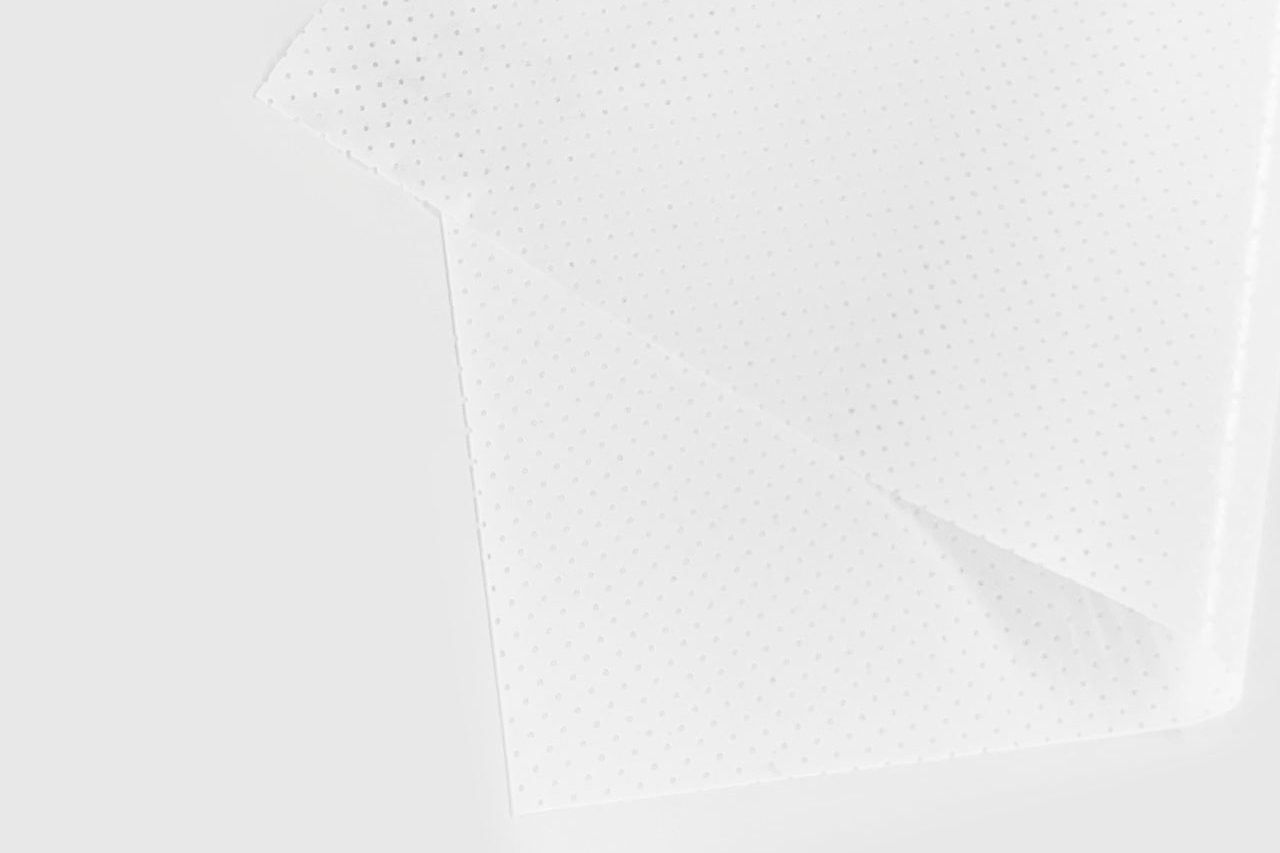

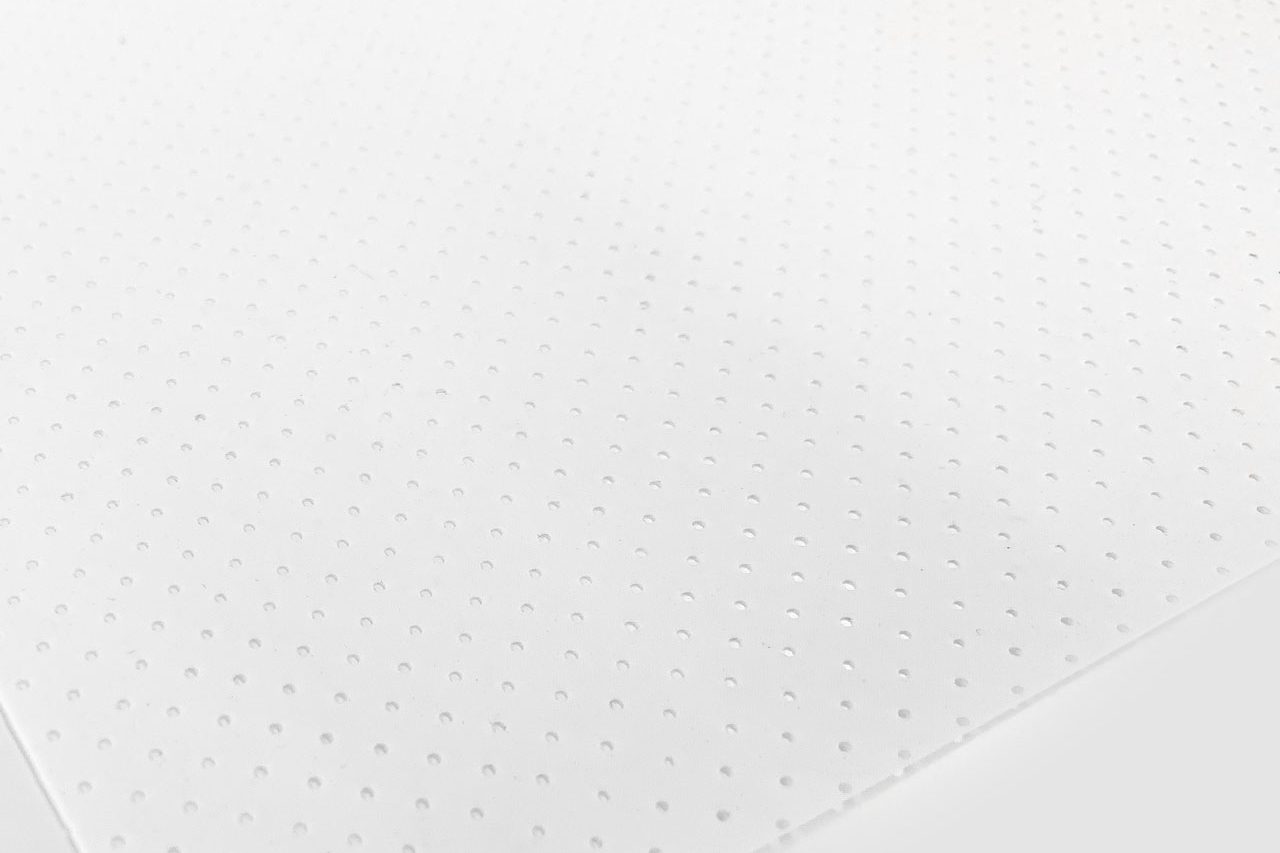

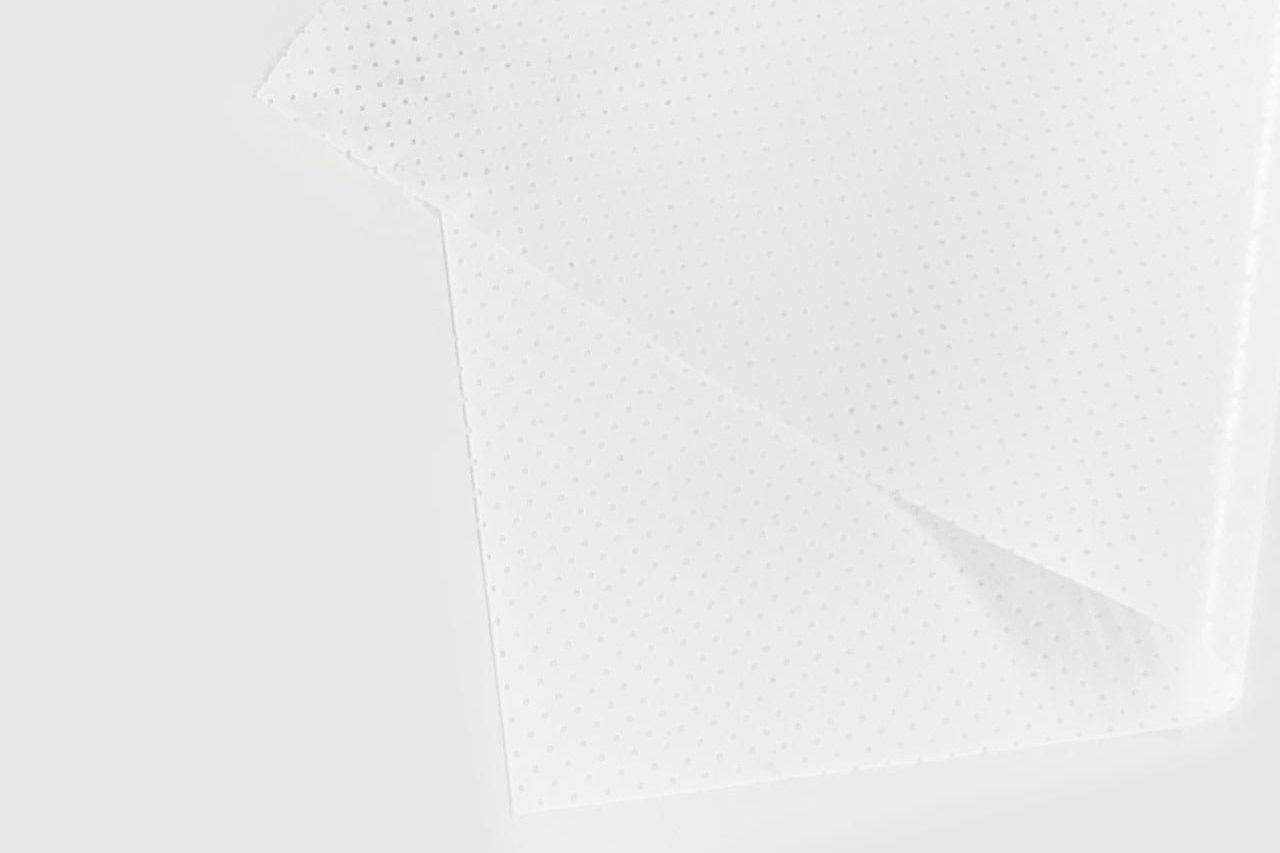

Ligkt™ V4.0/2.0/0.5

0.1mm diameter staggered perforation spaced 4.0mm and 2.0mm apart

▼

Our microperforated acoustic stretched ceiling is made up of a series of perforations. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes (3.6mm and 1.8mm), and the last number refers to the hole diameter (0.5mm). The surface comes in 3 types of finishing – glossy, matte and satin.

Download Specification Sheet PDF

Microperforation Detail

The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter.

Drawing of Ligkt™ Microperforated

Section Detail with Microperforated Pattern V4.0/2.0/0.5

Hole Diameter = 0.5mm
Distance between Holes = 4.0mm/2.0mm

Sound Absorption Coefficient

Ligkt™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.

SAA = 0.78
NRC = 0.89

Previous
Next

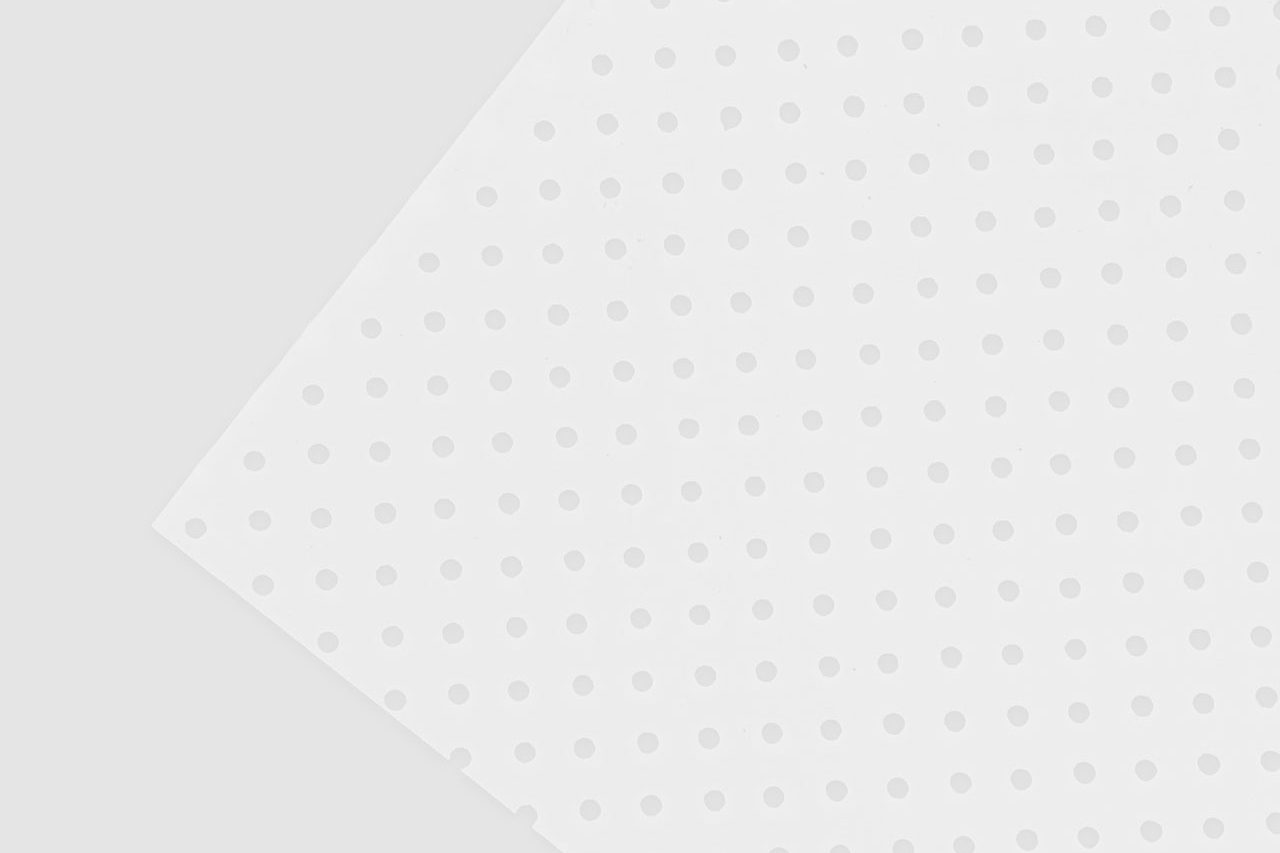

Ligkt™ V5.0/2.5/1.0

0.1mm diameter staggered perforation spaced 5.0mm and 2.5mm apart

▼

Our microperforated acoustic stretched ceiling is made up of a series of perforations. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes (5.0mm and 2.5mm), and the last number refers to the hole diameter (1mm). The surface comes in 3 types of finishing – glossy, matte and satin.

Download Specification Sheet PDF

Microperforation Detail

The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter.

Drawing of Ligkt™ Microperforated

Section Detail with Microperforated Pattern V5.0/2.5/1.0

Hole Diameter = 0.5mm
Distance between Holes = 5.0mm/2.5mm

Sound Absorption Coefficient

Ligkt™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.

SAA = 0.78
NRC = 0.78

Previous
Next
